DJI

DJI AGRAS T40

$26,998.00
Package

Request More Information

For more information contact info@orijinativedrones.com

DJI AGRAS T40

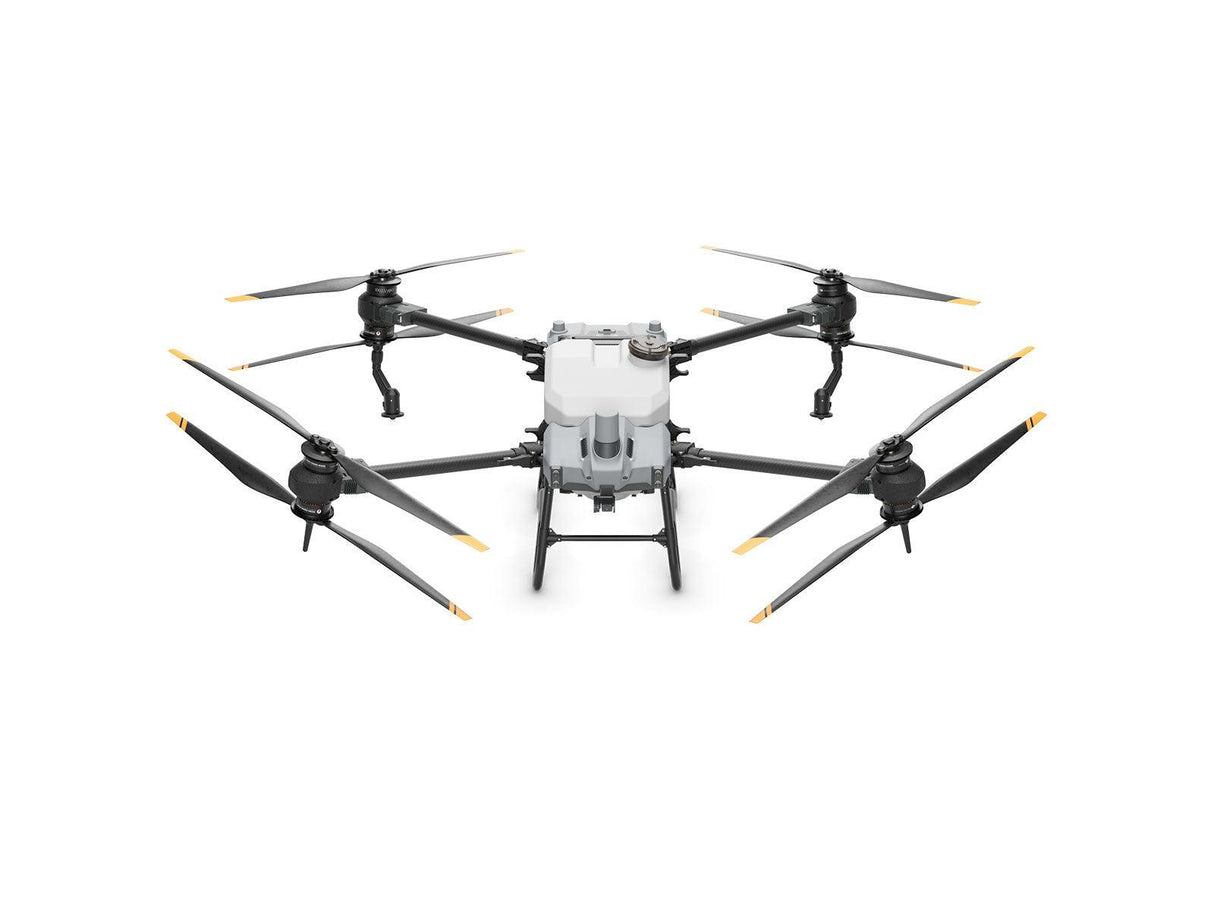

Introducing the AGRAS T40 - Redefining Agricultural Excellence
Experience cutting-edge innovation with the AGRAS T40, featuring the groundbreaking Coaxial Twin Rotor design. This exceptional design empowers the AGRAS T40 to effortlessly bear a substantial spray load of 40 kg, as well as a spread load of 50 kg (equivalent to 70 liters).
Enhancing its capabilities further, the AGRAS T40 boasts a Dual Atomized Spraying System, seamlessly integrated with DJI Terra, Active Phased Array Radar, and Binocular Vision technologies. This synergy of advanced features equips the AGRAS T40 to excel in various missions, ranging from meticulous surveying and accurate mapping to efficient spraying and precise spreading.
Elevate your agricultural operations to unparalleled levels of precision and performance with the AGRAS T40. Discover the future of farming technology today.

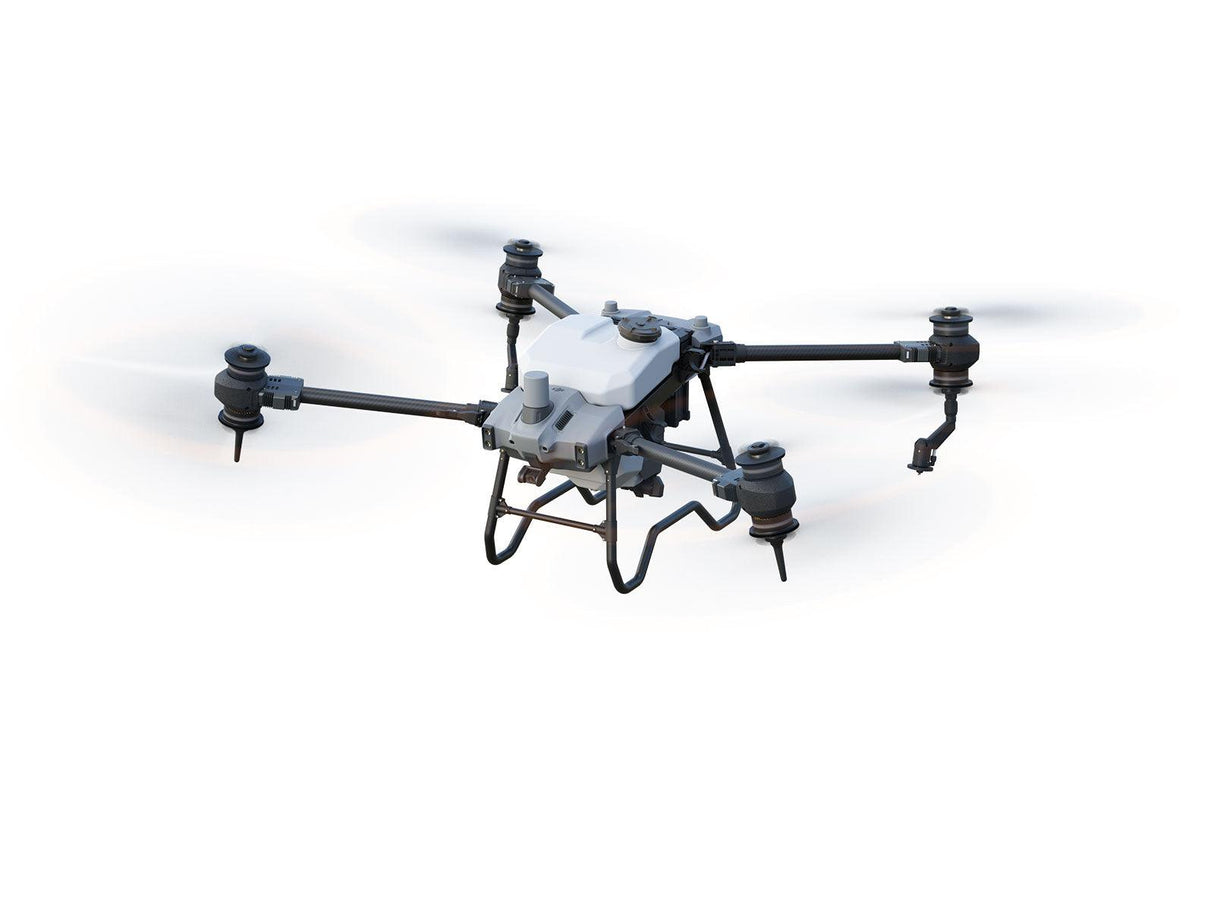

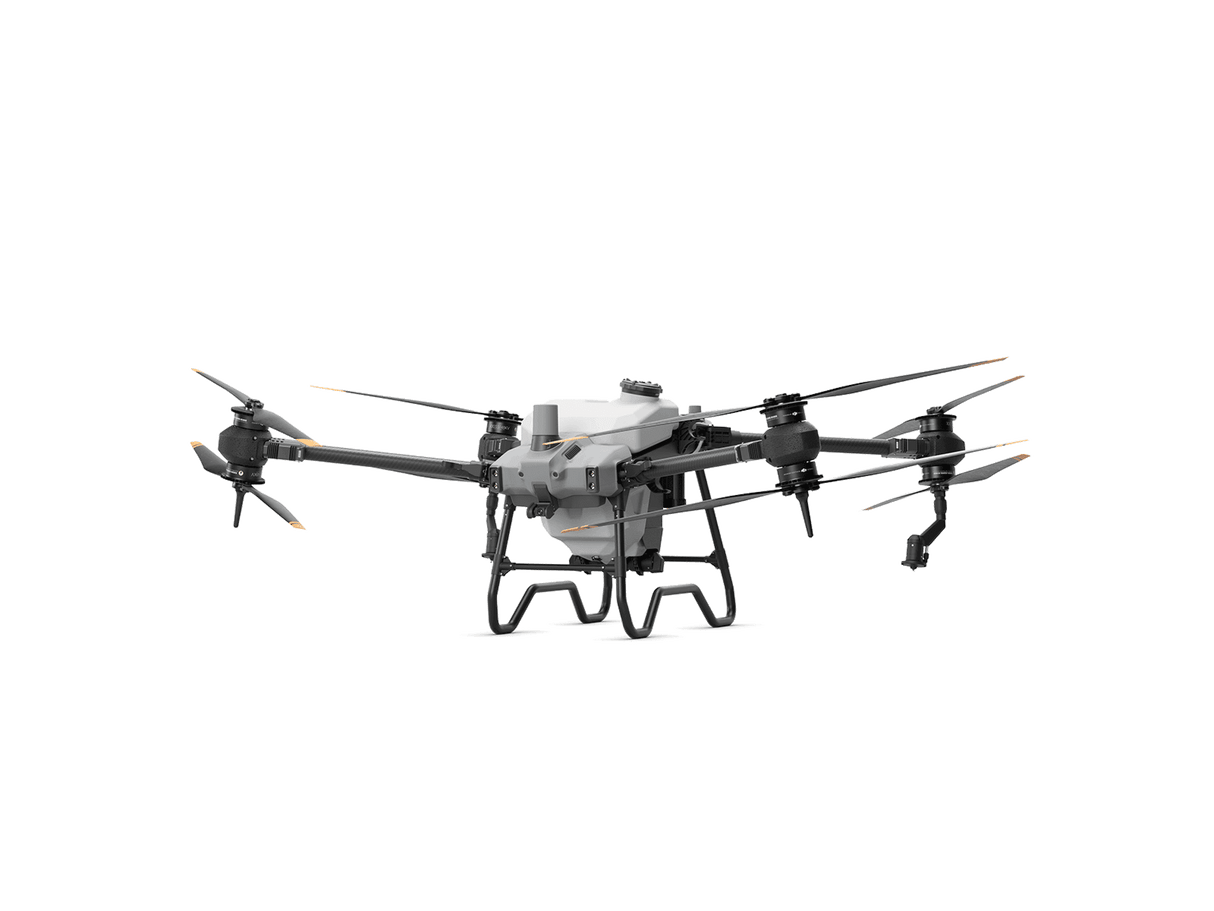

Massive payload increase thanks to the coaxial twin-rotor
The AGRAS T40 features a coaxial twin rotor design that increases the payload capacity by 30% with a maximum payload of 50 kg. Its foldable design reduces the aircraft size by 70% for greater portability.
Dual atomization for even spraying
12 L/min
Magnetic Drive Impeller Pump
The new magnetic transmission design completely isolates the pesticide from the motor, making the aircraft corrosion-proof and ultra-durable.
Quick disassembly by hand for easy cleaning.

Dual Atomized Centrifugal Sprinkler

The dual-atomized spray disc ensures even droplets and more efficient pesticide usage.
The proprietary centrifugal valve prevents leakage, avoids over-fertilization, and reduces pesticide use while protecting the environment.

T40 spreading system (50kg payload)
Enhanced spreading efficiency for superior performance
Real-time weighing
The aircraft is equipped with a weighing sensor that monitors the spread quantity and remaining payload.
Fast disassembly and cleaning

The spreading device can be dismantled in 3 minutes and washed with water.

Active Phased Array Radar + Binocular Vision
Omnidirectional Obstacle Sensing
The Active Phased Array Radar is incorporated with a binocular vision sensor system to provide 360-degree horizontal omnidirectional obstacle sensing, offering optimal security. The detection distance of up to 50 m allows for intelligent terrain following, smooth scaling and bypassing of multiple obstacles.

Mapping, spraying and spreading, all in one

The AGRAS T40 combines mapping, spraying and spreading functions, while its UHD camera and adjustable gimbal enable easy capture of your desired view. Farmland and orchard images can be captured in real time, and local maps can be generated using the remote controller with the D-RTK 2 Mobile Station. The system detects land boundaries and obstacles automatically, for quicker planning of flight routes over farmland and hilly orchards.

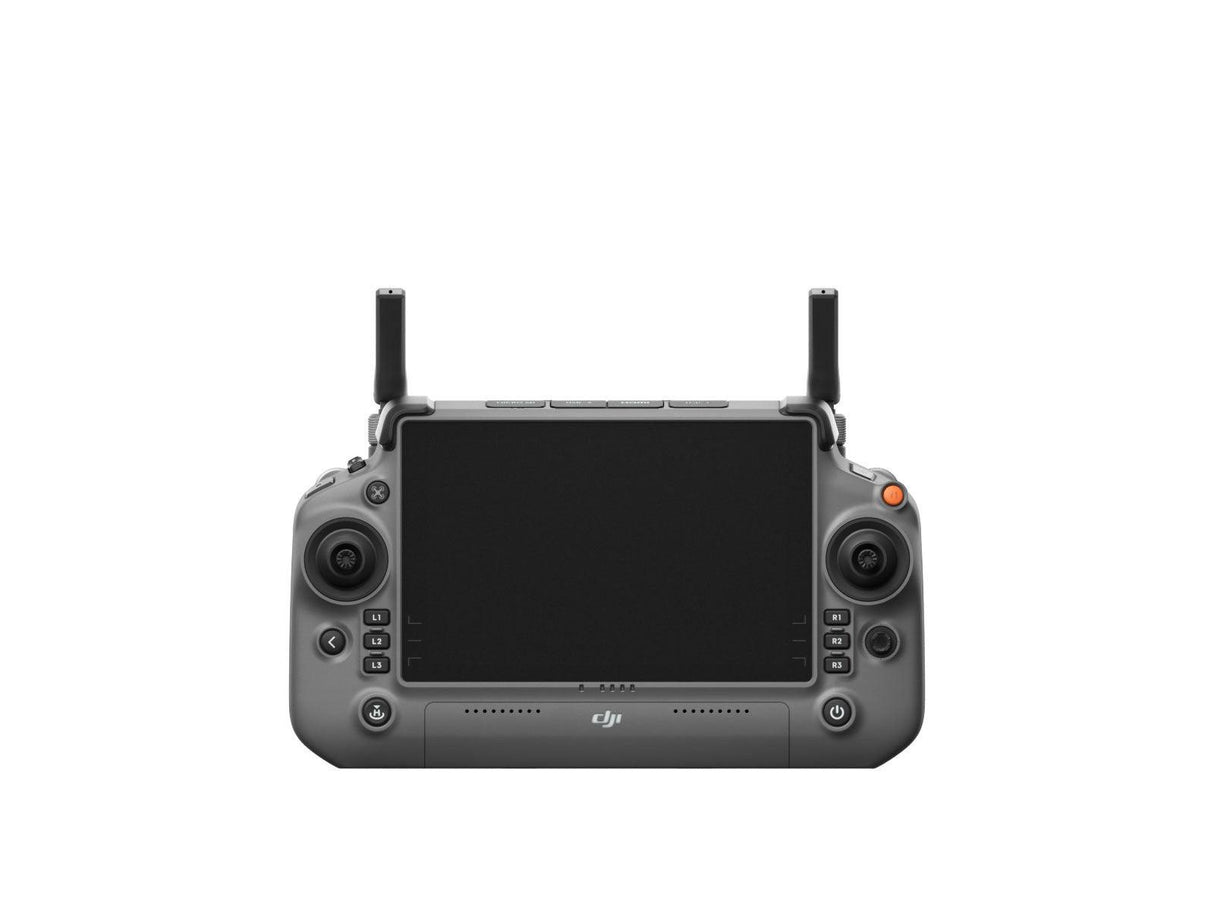

Fully enhanced remote controller for smoother, faster mapping

The 8-core processor makes mapping of 6.67 hectares possible in 10 minutes. Minimizes wasted journeys with intelligent route planning, for greater efficiency. The large 7-inch high brightness screen offers a broader view with refined detail. A wide range of custom physical buttons provides flexible control.

Robustly tested for ultimate reliability

The core components are designed to withstand complex and harsh farmland environments. They have passed a host of rigorous tests such as corrosion prevention, high and low temperature, and aging tests, to ensure peace of mind for the user.

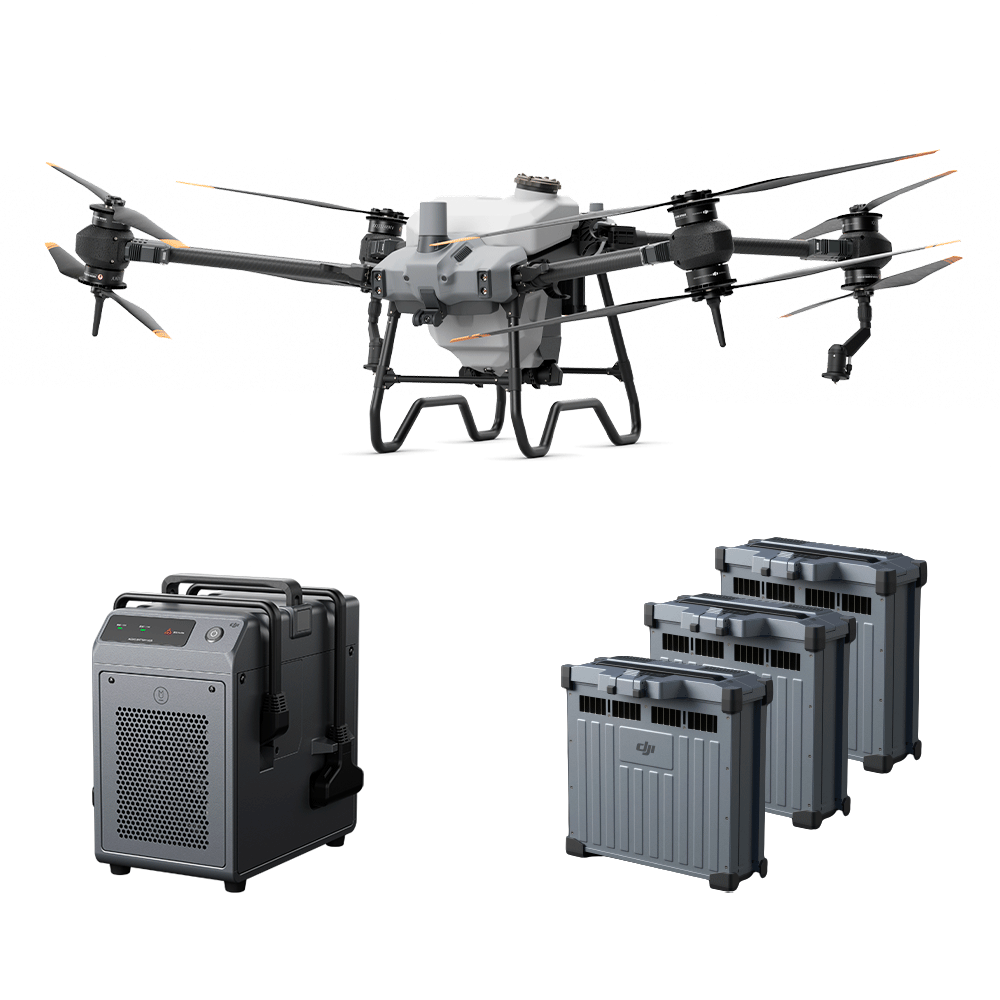

Ultra-fast charging

12000W Multifunctional Inverter Generator with new EFI technology and 15% fuel saving. The charging station produces 1500W AC output, sufficient to power the remote controller, water pump, re-loader, lights, and other components. The 30000mAh Intelligent Flight Battery with its standard air-cooled heat sink can cool down rapidly.
